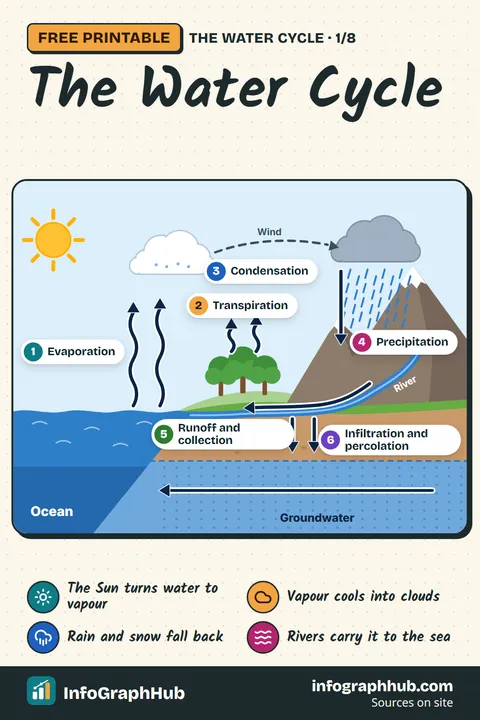

The Water Cycle Explained

1 2 3 4 5 6

6 labelled parts: Evaporation → Transpiration → Condensation → Precipitation → Runoff and collection → Infiltration and percolation. Watch it build, or tap a number.

Step 1 of 6: Evaporation

The Sun heats oceans, lakes and rivers, turning liquid water into invisible water vapour. Oceans supply most of it.

Step 2 of 6: Transpiration

Plants take up water through their roots and release vapour through tiny leaf pores called stomata.

Step 3 of 6: Condensation

Rising vapour cools and condenses into tiny droplets around specks of dust or salt, forming clouds.

Step 4 of 6: Precipitation

Droplets join and grow until they are too heavy to float, then fall as rain, snow or hail.

Step 5 of 6: Runoff and collection

Water flows over the land into streams, rivers and lakes, and finally back to the sea.

Step 6 of 6: Infiltration and percolation

Some water soaks into the soil and trickles down to become groundwater that feeds wells and springs.

Read the full explanation and download it

Explore the library Collections

Explore by subject

Editors’ picks

Good places to start, chosen by our editors. Not ranked by popularity.

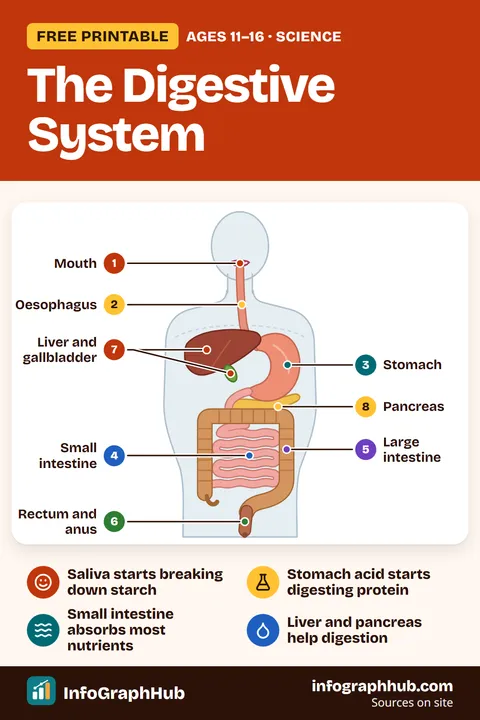

ScienceLabelled diagramThe Human Digestive System: How Food Becomes EnergyThe digestive system breaks food into nutrients small enough to enter the blood. Food passes from the mouth through the oesophagus, stomach and intestines, helped by juices from the liver, gallbladder and pancreas.InteractiveOpen the infographic

Explore by type of visual

Some ideas are best as a diagram, others as a timeline or a side-by-side comparison.

Interactive

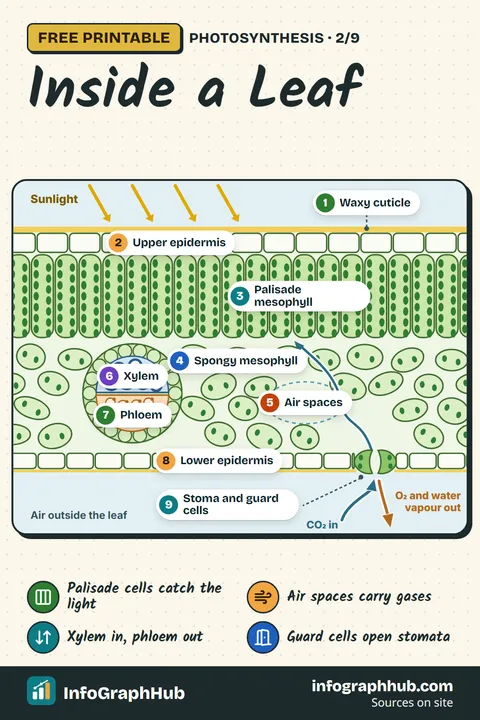

Inside a Leaf: Labelled Leaf Cross-Section
